产品介绍

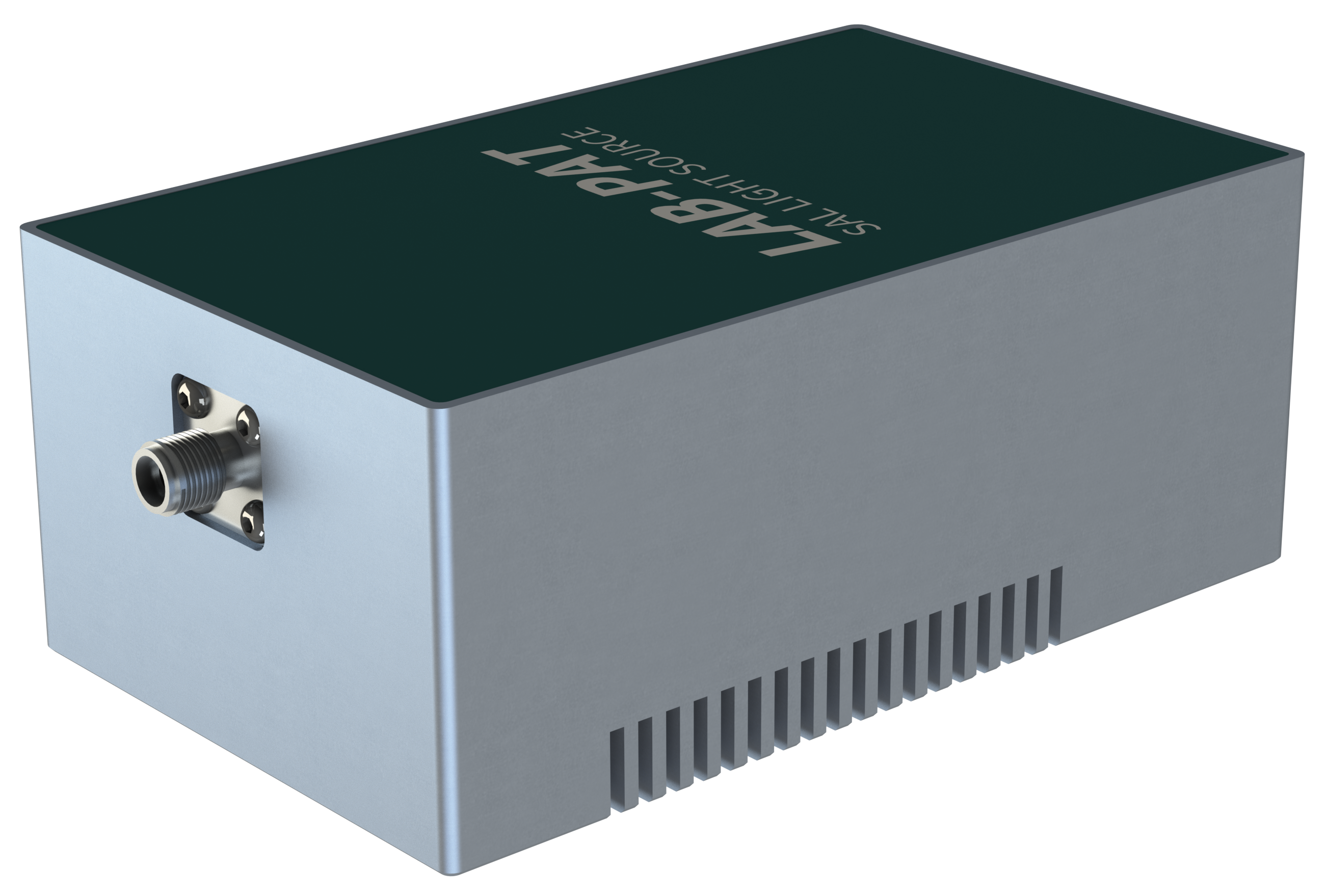

SAL系列光源，小巧精致，方便独立或集成使用。SAL光源配合光谱仪、光谱光纤等，可灵活进行检测。光源输出SMA905接口（可选FC口），方便光纤连接即插即用，并保障良好的重复一致性。光源种类涵盖单色激光、连续光谱、单色LED、波长校准光源等多个型号。支持OEM定制（包括波长、类别、功率、接口、装配尺寸等），以满足客户的个性话需求。
产品特征
•180-2500nm光谱范围内光源可选，SMA905接口（FC可选）；
•整体尺寸100*60*40mm，重量＜1Kg（非标和个别产品除外）；
•输入功率12V2A（非标和个别产品除外），工作温度-20到 40℃；
•支持定制（波长、类别、功率、接口、装配尺寸等）。
应用场景
•实验教学紫外可见近红外波段发光、透射、反射、吸收、拉曼、荧光等光谱实验搭建和应用；
•光学、生物、材料等科研领域光谱系统搭建和应用；
•环保、工业、农业等光谱分析系统搭建和应用。
规格参数
型号 | 类别 | 波段nm | 功率 | 备注 |
SAL1A1 | 激光 | 405±0.5 | 100mW | 线宽＜3nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL1A2 | 激光 | 488±0.5 | 100mW | 线宽＜0.1nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL1A3 | 激光 | 532±0.5 | 100mW | 线宽＜0.1nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL1A4 | 激光 | 633±0.5 | 500mW | 线宽＜0.1nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL1A5 | 激光 | 785±0.5 | 500mW | 线宽＜0.1nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL1A6 | 激光 | 830±0.5 | 500mW | 线宽＜0.1nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL1A7 | 激光 | 1064±0.5 | 500mW | 线宽＜0.1nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A1 | LED | 380-840 | 5W | 连续白光LED，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A2 | LED | 254±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A3 | LED | 265±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A4 | LED | 275±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A5 | LED | 295±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A6 | LED | 310±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A7 | LED | 365±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A8 | LED | 380±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A9 | LED | 395±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A10 | LED | 405±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A11 | LED | 420±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A12 | LED | 430±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A13 | LED | 440±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A14 | LED | 460±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A15 | LED | 480±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A16 | LED | 490±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A17 | LED | 520±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A18 | LED | 560±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A19 | LED | 590±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A20 | LED | 600±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A21 | LED | 620±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A22 | LED | 660±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A23 | LED | 680±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A24 | LED | 700±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A25 | LED | 730±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A26 | LED | 760±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A27 | LED | 780±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A28 | LED | 810±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A29 | LED | 850±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A30 | LED | 880±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A31 | LED | 900±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A32 | LED | 940±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A33 | LED | 980±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL2A34 | LED | 1050±5 | 5W | 线宽＜9-12nm，寿命>10000hr，稳定性1.5% RMS 2hr |
SAL3A1 | 钨灯 | 180~2500 | 10W | 色温2700k，寿命>4000hr，稳定性0.5% RMS 2hr |
SAL4A1 | 汞灯 | 253~1700 | 3W | 波长校准用，寿命>3000hr，稳定性2% RMS 2hr |
SAL4A2 | 氖灯 | 342~1152 | 3W | 波长校准用，寿命>3500hr，稳定性2% RMS 2hr |
